Product Description

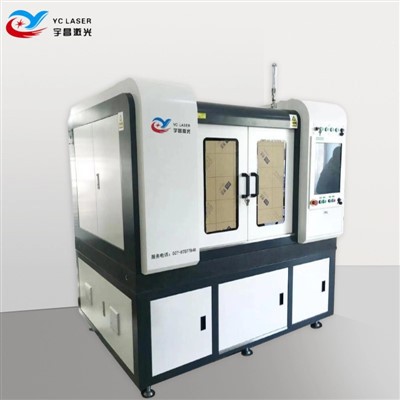

Covlub cev muaj zog core laser txiav tshuabyog tsim tshwj xeeb rau siab -ceev, siab-precision, moldless laser txiav ntawm ntau lub cev muaj zog stator thiab rotor cores (silicon steel los xij / hluav taws xob hlau), ua kom sai prototyping thiab saj zawg zog loj zus tau tej cov cores rau txhua yam los ntawm tshiab zog tsav motors rau industrial servo motors.
Khoom Taw Qhia
Cov cuab yeej no yog nruab nrog marble precision platform thiab gantry -style enclosed qauv, muab zoo rigidity, poob siab tsis kam, thiab siab - ceev stability. Nws kuj tseem siv lub tshuab hluav taws xob sib nqus levitation linear motor, 0.5µm siab -precision grating kav, thiab tag nrho kaw- voj tsheb npav CNC system, ua rau cov lus teb ceev ceev, siab precision, thiab tsis tshua muaj txij nkawm.
Qhov zoo
Tsis Muaj Tus Nqi Pwm
Tsis muaj pwm yuav tsum tau, ib zaug - khoom tsim tau, haum rau kev tsim qauv, me me -batch customization, thiab ntau- ntau yam co- ntau lawm.
Kev hloov pauv tam sim
Kev hloov tsim qauv siv tam sim; hloov mus rau cov khoom tshiab yuav tsum tsuas yog feeb ntawm kev hloov kho software, ua kom luv luv xa khoom mus.
High Material Yield
Cov ntaub ntawv txawj ntse routing algorithm ua tiav ntau dua lossis sib npaug ntawm 80% kev siv cov khoom siv, zoo dua li cov khoom qub qub.
Unlimited Geometry
Yooj yim ua tiav cov duab geometric yooj yim xws li trapezoidal grooves, txuas hlau nplaum, thiab peb -cov roj raws li qhov loj me, rhuav tshem cov kev txwv lub cev ntawm cov pwm.
Nyob ntsiag to & huv si
Tsis muaj suab nrov stamping lossis kev vibration, ua rau muaj kev ua haujlwm ntsiag to thiab muaj kev nyab xeeb dua, ua tau raws li cov qauv ntawm lub Hoobkas ntse niaj hnub.
Technical data
|
Yam khoom |
Parameter |
|
Laser wavelength |
1060-1080nm |
|
Laser tso zis zog |
1000W-3000W (yeem) |
|
Max.txiav ntau yam |
600 * 600mm (yeem) |
|
Precision ntawm rov ua qhov chaw ntawm X / Y axis |
±5µm |
|
Kev ceev ceev |
0-500mm / s |
|
Qhov siab tshaj plaws acceleration |
1.5G |
|
Worktable precision |
Tsawg dua los yog sib npaug li 0.015mm |
|
Hom kis tau tus mob |
Imported linear motor +0.5µm grating kav |
|
Tag nrho lub tshuab fais fab (tsis muaj kiv cua) |
Tsawg dua lossis sib npaug li 8KW |
|
Tag nrho qhov hnyav ntawm tag nrho lub tshuab |
Txog 1800KG |
|
Sab nraud qhov ntev (ntev * dav * qhov siab) |
1800 * 1470 * 1890 hli (Rau siv) |
Daim ntawv thov kev lag luam
1. Tshiab Zog Tsheb Tsav Tsav Tsheb
- Stator Core: Siab- precision machining ntawm complex rectangular thiab trapezoidal slots
- Siab-kev ua tau zoo Rotor Core: Kev sib xyaw ua ke ntawm cov hlau nplaum sib nqus, txuas hlau nplaum, qhov sib npaug, thiab qhov hnyav- txo qhov
2. Muaj Servo thiab Precision Micromotor
- Gear Machining: Yam tsawg kawg ntawm cov hniav dav ntawm 0.15mm, ua tau raws li qhov yuav tsum tau muaj ntawm micromotors
- Rapid Prototyping: Ua kom tiav tag nrho cov txheej txheem los ntawm kev kos duab mus rau kev sib dhos ua pov thawj hauv 48 teev.
